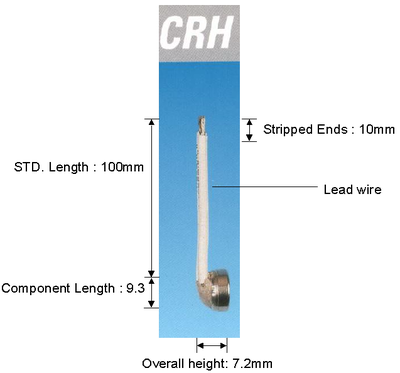

Thermik Product : 13.5A To 60A : CRH
| Automatic resetting, without base insulation for high performance with connection leads |
||
 |
Contact type |
Normally closed |
| Nominal switching temperature (NST) in steps of 5℃ |
70℃-180℃ | |
| Standard tolerance |
±10K |
|
| Reset temperature range blow NST (UL/CSA) |
depends on NST |
|
| Operating voltage...AC/DC - available, values on inquiry |
up to 250V~ |
|
| Rated voltage UAC |
115V/230V(VDE) 250V (UL) |
|
| Rated current AC cos ϕ = 1.0 (ohmic load) / switching cycles |
13.5A/300 |
|
| 42.0A/300 | ||
| Rated current AC cos ϕ = 0.6 acc. to IEC 60730-2-9 |
9.0A/300 | |
| Contact bounce time |
< 1 ms |
|
| Contact resistance (acc. to MIL-Std. R 5757) |
< 50 mΩ |
|
| Impregnation resistance with- or without resin (acc. to requirements)* |
suitable |
|
| Vibration proof at 10 … 60 Hz |
100 m/s² | |
| Pressure stability of housing |
600N |
|
| Suitable for protection class I or II |
suitable |
|
| Standard wiring connection |
lead wire 1.0mm² / AWG18 |
|
| Approvals available (according to design) ** |
IEC; ENEC; VDE ;UL ;CSA | |
