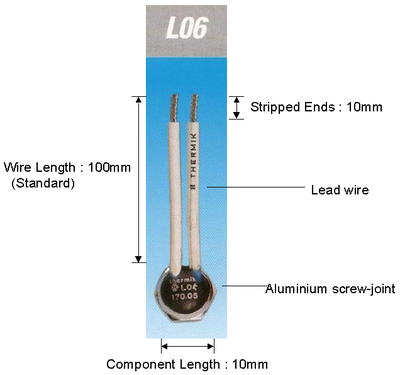

Thermik Product : 4A To 25A : L06
| Automatic resetting, without base insulation for high performance with connection leads |
||
 |
Contact type |
Normally closed |
| Nominal switching temperature (NST) in steps of 5℃ |
70℃-200℃ | |
| Standard tolerance |
±5K |
|
| Reset temperature range blow NST (UL/CSA) |
depends on NST | |
| Operating voltage...AC/DC - available, values on inquiry |
up to 500V~ |
|
| Rated voltage UAC |
250V (VDE) 277V (UL) | |
| Rated current AC cos ϕ = 1.0 (ohmic load) / switching cycles |
10.0A/10,000 |
|
| 25.0A/2,000 | ||
| Rated current AC cos ϕ = 0.6 acc. to IEC 60730-2-9 |
6.3A/10,000 | |
| Contact bounce time |
< 1 ms |
|
| Contact resistance (acc. to MIL-Std. R 5757) |
< 50 mΩ |
|
| Impregnation resistance with- or without resin (acc. to requirements)* |
suitable |
|
| Vibration proof at 10 … 60 Hz | 100 m/s² | |
| Pressure stability of housing | 600N | |
| High voltage insulation (not C - versions) | 2 kV | |
| Suitable for protection class I or II |
suitable |
|
| Standard wiring connection |
lead wire 0.75mm² / AVG18 |
|
| Approvals available (according to design) ** |
IEC;ENEC;VDE;UL;CSA;CQC | |
