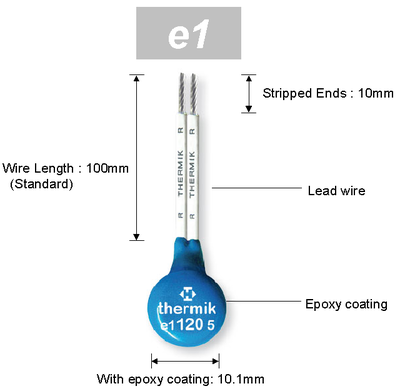

Thermik Product : 1.6A To 7.5A : e1
| Automatic resetting, without base insulation for high performance with connection leads |
||
 |
Contact type |
Normally closed |
| Nominal switching temperature (NST) in steps of 5℃ |
70℃-160℃ | |
| Standard tolerance |
±5K |
|
| Reset temperature range blow NST (UL/CSA) |
-35K±15K | |
| Operating voltage...AC/DC - available, values on inquiry |
100V up to 500V~ |
|
| Rated voltage UAC |
250V (VDE) | |
| Rated current AC cos ϕ = 1.0 (ohmic load) / switching cycles |
2.5A/10,000 |
|
| 5.0A/3,000 | ||
| Rated current AC cos ϕ = 0.6 acc. to IEC 60730-2-9 |
1.6A/10,000 | |
| Max. switching current at 250V ~ / cos ϕ = 0.4 - 0.5 / sw. cycles |
7.2A/1,000 | |
| Contact bounce time |
< 1 ms |
|
| Contact resistance (acc. to MIL-Std. R 5757) |
< 50 mΩ |
|
| Impregnation resistance with- or without resin (acc. to requirements)* |
suitable |
|
| Vibration proof at 10 … 60 Hz | 100 m/s² | |
| Pressure stability of housing | 150N | |
| High voltage insulation (not C-versions) | according 10 IEC - 1,450V | |
| Suitable for protection class I or II |
suitable |
|
| Standard wiring connection |
lead wire 0.25mm² |
|
| Approvals available (according to design) ** |
IEC;ENEC;VDE;UL | |
