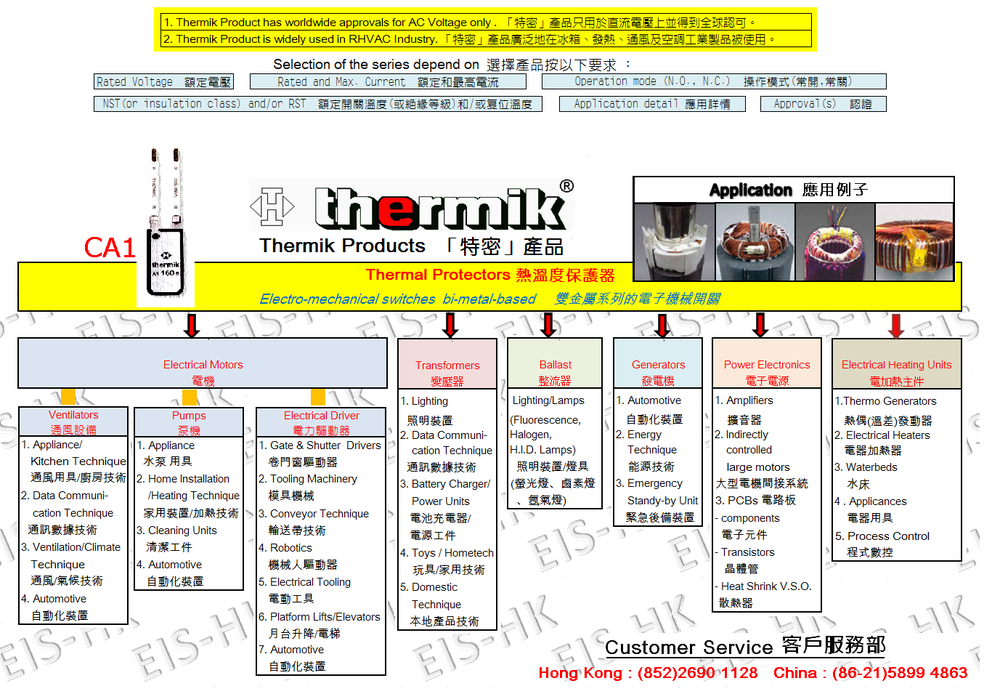

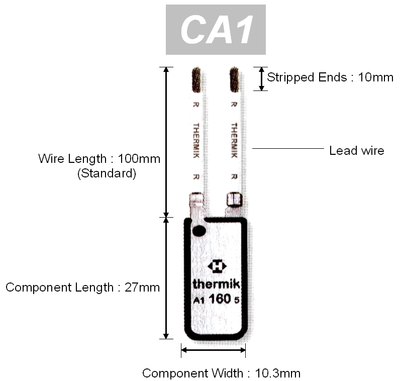

Thermik Product : 13.5A To 60A : CA1
| Automatic resetting, without base insulation for high performance with connection leads |
||
 |
Contact type |
Normally closed |
| Nominal switching temperature (NST) in steps of 5℃ |
70℃-160℃ | |
| Standard tolerance |
±5K |
|
| Reset temperature range blow NST (UL/CSA) |
>35℃ | |
| Operating voltage...AC/DC - available, values on inquiry |
250V~ |
|
| Rated voltage UAC |
250V |
|
| Rated current AC cos ϕ = 1.0 (ohmic load) / switching cycles |
37.0A/3,000 |
|
| Max. switching current at 250V ~ / cos ϕ = 0.4 - 0.5 / sw. cycles |
60.0A(cosϕ=1.0) | |
| Contact bounce time |
< 1 ms |
|
| Contact resistance (acc. to MIL-Std. R 5757) |
< 50 mΩ |
|
| Impregnation resistance with- or without resin (acc. to requirements)* |
suitable |
|
| Suitable for protection class I or II |
suitable |
|
| Standard wiring connection |
lead wire 1.5mm² / AWG16 |
|
| Approvals available (according to design) ** |
IEC; ENEC; VDE | |
